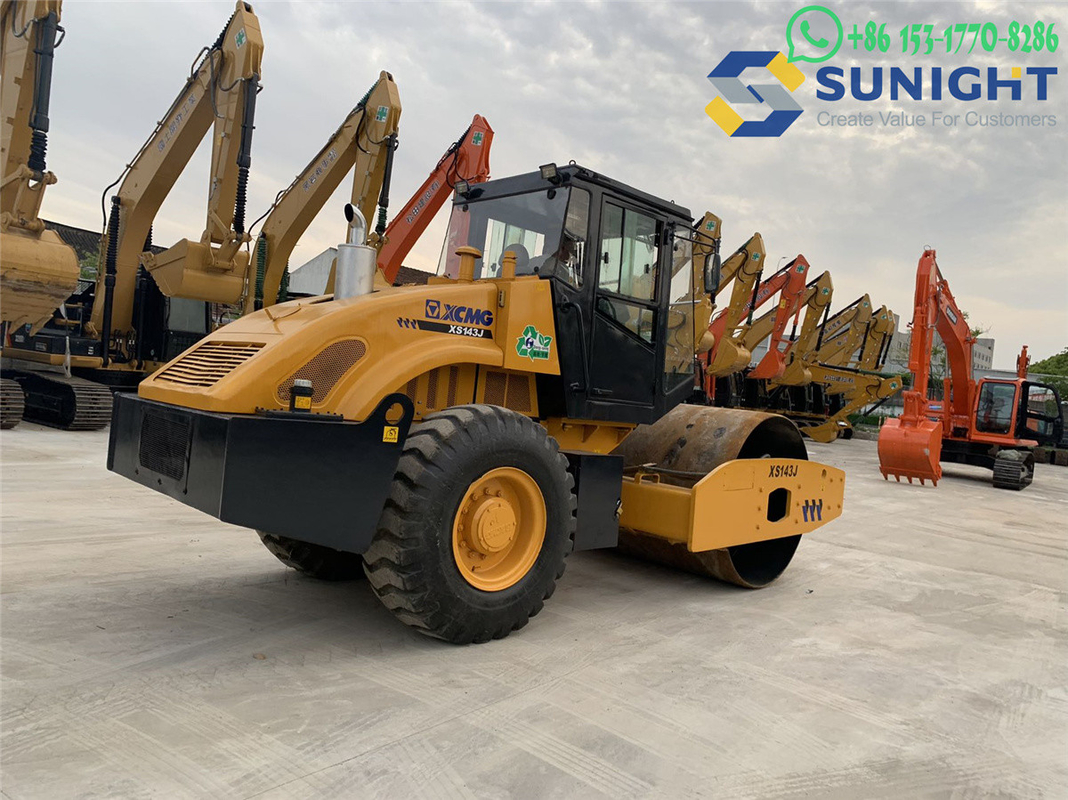

High Efficiency Single Drum 14 Ton Vibratory Road Roller XS143J

The XCMG XS143J is a single drum vibratory road roller widely used in compaction work for foundations, roads, highways, and construction projects. It is renowned for its reliability, efficient performance, and robust design, making it ideal for medium to large-scale projects.

XCMG XS143J Road Roller - Specifications

Engine:

• Engine Model: Cummins 4BTA3.9-C125 or equivalent (varies by region)
• Engine Type: Water-cooled, turbocharged, 4-cylinder diesel engine
• Rated Power Output: 93 kW (125 HP) @ 2200 RPM
• Emission Standards: Meets Tier 2/Stage II or higher, depending on the market.

Performance:

• Operating Weight: 14,000 kg (14 tons)
• Static Linear Load: 322 N/cm
• Vibration Frequency: 28/35 Hz (two amplitude settings)
• Centrifugal Force:
  • High Amplitude: 274 kN
  • Low Amplitude: 206 kN
• Amplitude:
  • High: 1.9 mm
  • Low: 0.95 mm
• Travel Speed: Up to 11 km/h (6.8 mph)
• Climbing Ability: 30% gradeability

Dimensions:

• Overall Length: 6,200 mm
• Overall Width: 2,260 mm
• Overall Height: 3,000 mm
• Drum Width: 2,130 mm
• Drum Diameter: 1,560 mm
• Ground Clearance: 440 mm
• Wheelbase: 3,100 mm

Hydraulic System:

• Advanced hydraulic drive system for smooth and efficient operation.
• Dual-frequency, dual-amplitude vibration system for optimized compaction performance.

Key Features:

1. Efficient Compaction:

   • Offers dual-amplitude and dual-frequency vibration modes to adjust to different types of soil and compaction requirements.
   • Large static linear load and high centrifugal force ensure optimal compaction efficiency.

2. Operator Comfort:

   • Ergonomically designed cabin with a wide field of view.
   • Equipped with air conditioning and a suspension seat to reduce operator fatigue during long shifts.
   • Intuitive dashboard for easy monitoring of machine performance.

3. Durable Build:

   • Reinforced steel drum for long-lasting performance in tough conditions.
   • Heavy-duty frame designed to handle demanding workloads.

4. Fuel Efficiency:

   • Low fuel consumption due to the turbocharged diesel engine, designed for efficiency without sacrificing power.

5. Safety Features:

   • ROPS/FOPS-certified cab for operator protection.
   • Vibration-isolated operator station for a safer working environment.

6. Ease of Maintenance:

   • Centralized maintenance points and a tilting cab design for easy access to engine components.
   • Long service intervals to reduce downtime.

Applications:

• Road Construction: Ideal for compacting layers of asphalt, gravel, sand, and soil in road-building projects.
• Foundation Compaction: Used for preparing solid foundations for buildings and structures.
• Airport Runways: Effective for compacting large, flat areas like runways.
• Dams and Embankments: Suitable for large-scale earth compaction in dam construction.
• Industrial Sites: Provides excellent results in compacting sub-base layers in industrial zones.

Advantages of the XS143J:

• Versatility: Adjustable vibration modes allow it to adapt to various soil types and compaction tasks.
• Durability: Built with high-strength materials to withstand heavy use in harsh conditions.
• Global Support: Backed by XCMG’s extensive network for parts, service, and technical assistance.
• Cost-Effectiveness: Low operating costs combined with high performance make it a value-for-money investment.
