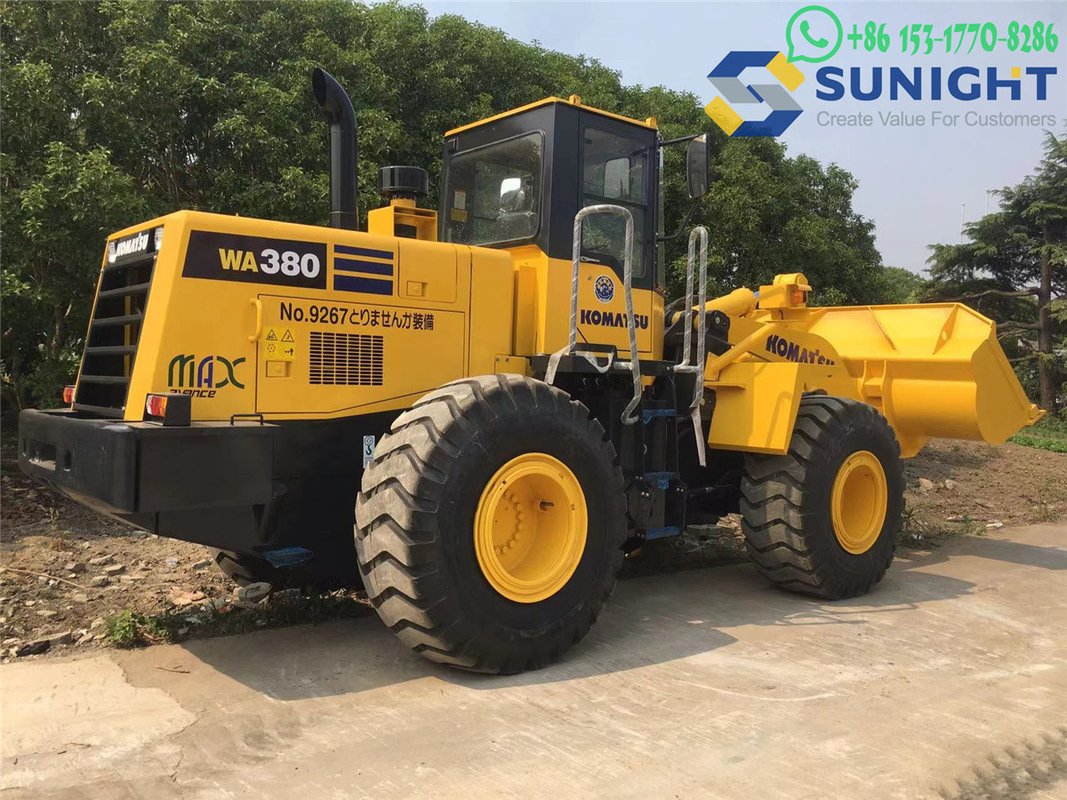

Komatsu WA380 WA380-6 Loader Used Komatsu Front End Loader

The Komatsu WA380 is a versatile and powerful wheel loader designed for use in a wide range of applications, from construction and mining to material handling and roadwork. Known for its robust performance, efficient operation, and operator comfort, the WA380 series is a popular choice for large-scale operations.

Here are the key specifications and features of the Komatsu WA380 wheel loader:

Komatsu WA380 Wheel Loader - Specifications

Engine:

• Engine Model: Komatsu SAA6D107E-2
• Engine Type: 6-cylinder, water-cooled, turbocharged diesel engine
• Engine Power Output:
  • Rated Power: 190 kW (255 HP) @ 2,000 RPM
  • Max Torque: 1,290 Nm @ 1,400 RPM
• Emission Standards: Meets Tier 3/Stage IIIA emission standards (varies by region).

Performance:

• Bucket Capacity: 2.4 m³ to 3.0 m³ (varies depending on the bucket configuration)
• Operating Weight: Approx. 17,100 kg (37,700 lbs)
• Max Load Capacity: Up to 5,000 kg (11,023 lbs) depending on the bucket and application.
• Max Dumping Height: 2,735 mm
• Max Reach at Ground Level: 3,385 mm
• Maximum Breakout Force: 138 kN
• Hydraulic System Flow Rate: 204 L/min
• Travel Speed:
  • Max Speed: 38 km/h (23.6 mph)
  • Max Gradeability: 30% (with full load)

Dimensions:

• Overall Length: 7,700 mm (302.3 inches)
• Overall Width: 2,480 mm (97.6 inches)
• Overall Height (top of cab): 3,470 mm (136.6 inches)
• Wheelbase: 3,100 mm (122 inches)
• Ground Clearance: 415 mm (16.3 inches)

Transmission:

• Transmission Type: Power-shift transmission with 4 forward gears and 3 reverse gears
• Differential Lock: Front and rear axle differential lock for improved traction in rough terrain.

Hydraulic System:

• Lift Arm System: Z-bar linkage (standard) or Parallel linkage (optional for specific applications).
• Boom Lift System: Dual-cylinder lift for better lifting power and stability.
• Tilt Cylinder: Single or dual tilt cylinders for better control during operation.

Features:

1. Enhanced Operator Comfort:

   • Spacious Cabin: Designed for maximum comfort with low noise levels, adjustable seats, and excellent visibility for the operator.
   • Air Conditioning: Standard climate control system for comfort in all weather conditions.
   • Intuitive Control System: Joystick steering with easily accessible controls and a user-friendly display panel for monitoring machine functions.

2. Powerful Hydraulics:

   • The Komatsu WA380 is equipped with a powerful hydraulic system that provides smooth and efficient operation. The advanced hydraulic system allows for faster cycle times, improving productivity in material handling.

3. Advanced Safety Features:

   • Operator Safety: Equipped with a ROPS/FOPS-certified cabin for operator protection in the event of an accident.
   • Automatic Load Sensing: The loader has a load-sensing hydraulic system that adjusts hydraulic flow based on the load, improving fuel efficiency and reducing stress on the hydraulic system.
   • Hydraulic Hose Burst Protection: Equipped with burst protection valves to ensure hydraulic hose safety in the event of failure.

4. Fuel Efficiency:

   • Komatsu’s Fuel Efficiency Technology: Designed for low fuel consumption while maintaining high performance, reducing operating costs over the machine's lifetime.
   • Eco Mode: The loader is equipped with an eco-mode option to further reduce fuel consumption when operating at lower capacities.

5. Durability and Low Maintenance:

   • The WA380 features a heavy-duty frame, reinforced for durability in tough working conditions. Additionally, the machine is designed for easy maintenance with convenient access points to essential components.
   • Long Service Intervals: Designed for extended maintenance intervals, reducing downtime and lowering the overall maintenance costs.

6. Versatility:

   • The Komatsu WA380 can be equipped with various attachments, such as forks, buckets (rock, light, heavy, etc.), snow plows, and other specialized tools to increase its versatility in different work environments.

Applications:

The Komatsu WA380 is suitable for a wide range of industries and applications, including:

• Construction: Ideal for earthmoving, loading, grading, and material transport on construction sites.
• Mining: Useful for loading and transporting materials in mining operations, especially in quarries or stockpiling areas.
• Road Construction: Excellent for moving materials in road construction, including dirt, gravel, and asphalt.
• Landscaping: Can be equipped with specialized attachments for handling landscaping materials.
• Agriculture: Useful for transporting bulk agricultural products like grain, hay, and other materials.
• Recycling & Waste Handling: Can be used for sorting and handling waste materials at recycling centers.

Competitive Advantage:

• Komatsu Durability: Known for its strong build quality, the Komatsu WA380 is built to withstand harsh operating conditions, including rough terrain and high-demand workloads.
• Fuel Efficiency & Productivity: Its advanced hydraulic system and fuel-efficient engine help to reduce operational costs, while the versatile bucket options make it highly adaptable for different jobs.
• Operator-Friendly: High operator comfort and advanced technology increase overall productivity, allowing operators to work efficiently for longer hours without fatigue.
• Global Service Network: Komatsu’s extensive dealer and service network ensures that parts, maintenance, and technical support are readily available around the world.

Conclusion:

The Komatsu WA380 wheel loader is a powerful, efficient, and versatile machine that excels in material handling, construction, mining, and other heavy-duty applications. With its durable construction, user-friendly features, and low operating costs, the WA380 is a reliable choice for businesses looking for a high-performance wheel loader that can handle tough tasks with ease.
