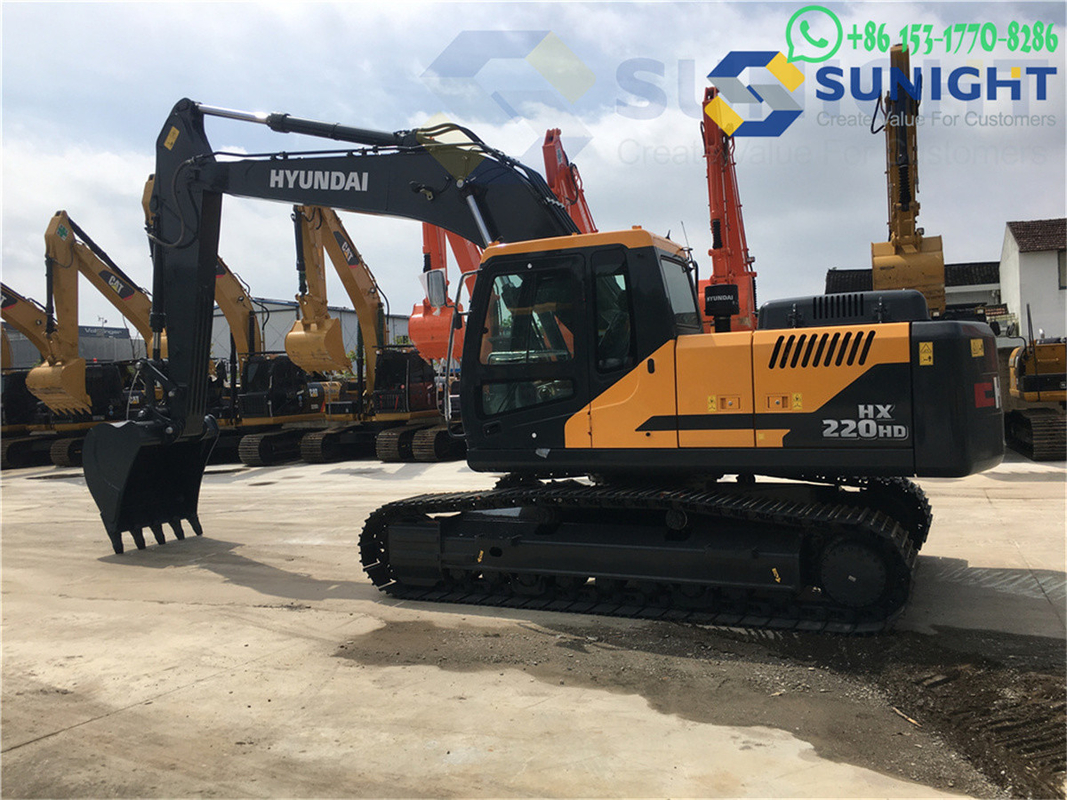

Used Hyundai 220HD Excavator HX200HD with 450L Fuel Capacity

The Hyundai HX220HD is a mid-range hydraulic crawler excavator in Hyundai's HX series. It is designed for heavy-duty construction and earth-moving tasks, providing excellent power, stability, and operational efficiency in demanding environments. The HX220HD is particularly suitable for applications such as excavation, digging, lifting, and material handling.

Key Specifications of the Hyundai HX220HD:

1. Engine:

   • Model: Cummins QSB6.7
   • Power Output: Approximately 157 hp (117 kW).
   • Engine Type: 6-cylinder, turbocharged diesel engine.
   • Emission Standard: Meets Tier 4 Final / Stage IV emissions requirements (for the latest models).

2. Operating Weight:

   • Approximately 22,300 kg (22.3 tons), making it a suitable mid-range excavator for various construction and earth-moving projects.

3. Bucket Capacity:

   • Typically, around 1.0 - 1.2 cubic meters (depending on the bucket type and configuration).

4. Hydraulic System:

   • Pump Type: Load sensing hydraulic system for efficient power distribution.
   • Max Flow: Approximately 2 x 265 L/min (for boom, arm, and swing operations).
   • High-efficiency hydraulic components for smooth and responsive operation.

5. Dimensions:

   • Overall Length: Approximately 9,500 mm.
   • Overall Width: Around 2,800 mm.
   • Overall Height: Approximately 3,300 mm (with boom fully retracted).
   • Track Length: About 4,500 mm for added stability.

6. Digging Reach:

   • Max Digging Depth: Around 6,650 mm.
   • Max Digging Radius: Around 9,800 mm.

7. Max Digging Height: Approximately 10,200 mm.

8. Fuel Tank Capacity:

   • Fuel Tank: Around 400 liters, allowing for extended operating hours without frequent refueling.

9. Travel Speed:

   • Max Speed: Around 5.5 km/h (with a high-speed option available for quicker travel between sites).

10. Cab Features:

• Operator's Cabin: Spacious, with excellent visibility and comfort.
• Air Conditioning: Standard, providing a comfortable environment for operators.
• Joystick Controls: Easy-to-use electronic joysticks for improved precision and less operator fatigue.

11. Safety and Efficiency Features:

• Advanced safety features such as automatic boom and arm protection, anti-collision systems, and overload alarm systems.
• Fuel-efficient engine for reduced running costs and longer operational hours.
• Premium diagnostics system for monitoring machine performance and early detection of maintenance issues.

12. Applications:

• Heavy-duty digging and excavation.
• Road construction, foundation work, and trenching.
• Landscaping and earthmoving for infrastructure projects.
• Mining or material handling in various sectors.

Performance Highlights:

• The Hyundai HX220HD offers a good balance of power, versatility, and fuel efficiency. Its hydraulic system is designed to provide faster cycle times and improved digging performance.
• The model is known for its low fuel consumption, making it cost-effective for long hours of operation in construction and earth-moving projects.
• The advanced hydraulic technology ensures smooth and precise control, even under heavy load conditions.
