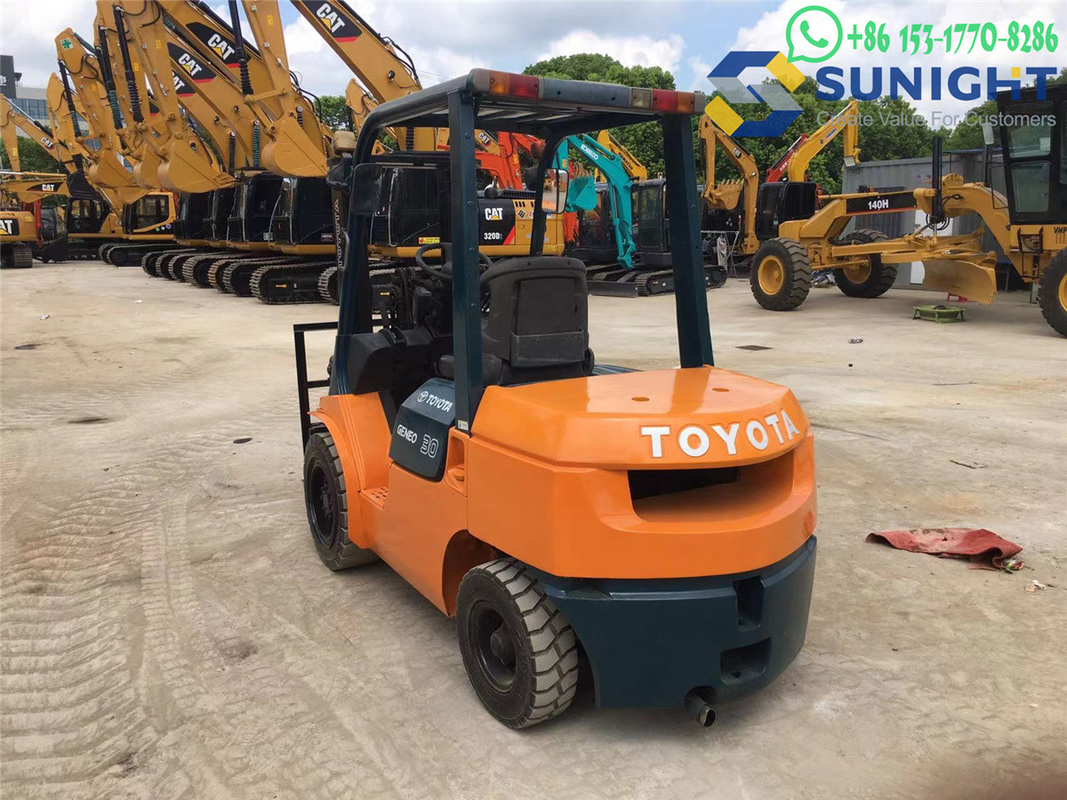

Original Japan Second Hand Diesel Toyota Fd30 In Good Condition

The Toyota FD30 is a robust and reliable diesel-powered forklift designed for medium to heavy-duty material handling tasks. Known for its durability, fuel efficiency, and operator-friendly features, it is widely used in warehouses, construction sites, and industrial applications.

Toyota FD30 Specifications

Engine

• Type: Diesel-powered internal combustion engine
• Displacement: 3.0 liters (approximate, depending on the engine variant)
• Power Output: Approximately 44–55 kW (59–74 hp), depending on the specific model
• Emission Compliance: Designed to meet industry standards for diesel emissions.

Performance

• Rated Capacity: 3,000 kg (6,614 lbs)
• Load Center: 500 mm (19.7 in)
• Maximum Lift Height: Varies by mast type; typical options range from 3,000 mm to 6,000 mm (118–236 in)
• Travel Speed: Up to 19 km/h (11.8 mph) unloaded
• Lifting Speed: Approximately 500 mm/s (19.7 in/s) unloaded
• Gradeability: Up to 20% at full load

Dimensions

• Length to Fork Face: 2,650 mm (104.3 in) approx.
• Overall Width: 1,220 mm (48 in)
• Height to Overhead Guard: 2,150 mm (84.6 in)
• Wheelbase: 1,600 mm (63 in)
• Ground Clearance: 135 mm (5.3 in) under the mast

Undercarriage

• Tire Type: Pneumatic or solid tires (depending on application)
• Front Tires: 7.00-12, 12PR
• Rear Tires: 6.00-9, 10PR

Fuel Tank

• Capacity: Approximately 50 liters (13.2 gallons)

Key Features

1. Strong Lifting Capacity: Handles loads up to 3,000 kg with ease.
2. Efficient Diesel Engine: Designed for long operating hours with low fuel consumption.
3. Operator Comfort: Spacious cabin with ergonomic controls and clear visibility.
4. Durable Construction: Reinforced mast and frame for heavy-duty operations.
5. Safety Features: Includes overhead guard, load backrest, and optional safety enhancements like speed controls.
6. Ease of Maintenance: Simplified access to engine and hydraulic components for quick servicing.

Applications

• Warehousing: Pallet handling, stacking, and order picking.
• Construction: Transporting building materials and equipment.
• Manufacturing: Moving raw materials and finished goods.
• Outdoor Operations: Ideal for rough terrain with pneumatic tire options.
